| Code FHI |
9072 |
| CAS No. |
|
Properties |
|
| λmax, nm |
907 |
| Class |
Cyanines |
| Purity, % |
98.8 |
| Solvent |
Acetone |
| E, L/g.cm |
210 |
| Melt. Point, oC |
225-228 |
Stability |
|
| Light |
High |
| Thermal |
High |
Solubility, % |
|
| Acetone |
3.5 |
| Benzene |
0.3 |
| Chloroform |
1.1 |
| Cyclohexanone |
3.2 |
| DMF |
4.3 |
| Dioxane |
0.2 |
| Ethanol |
2.2 |
| Ethyl Acetate |
1.1 |
| Methanol |
2.4 |
| Methyl Ethyl Ketone |
3.3 |
| Octane |
1.2 |
| Water |
not |
Application |
|
| Injection Molding |
+ |
| Coating |
+ |
| |
|
| Laser welding of plastics |
| NIR coatings |
| Security inks |
| Security ink dyes |
| NIR light absorbers |
|
 |
 |

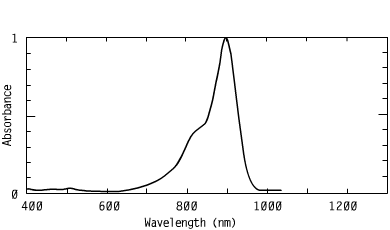

Product Description and Application:
|
|
This dye is specially designed for security inks applications and has very effective absorption with maximum 907nm and can effectively cover area of absorption between 850 and 950nm for other applications. |
|
|
